770342-1
Manufacturer:
TE Connectivity
Mfr.Part #:
770342-1
Datasheet:
Description:

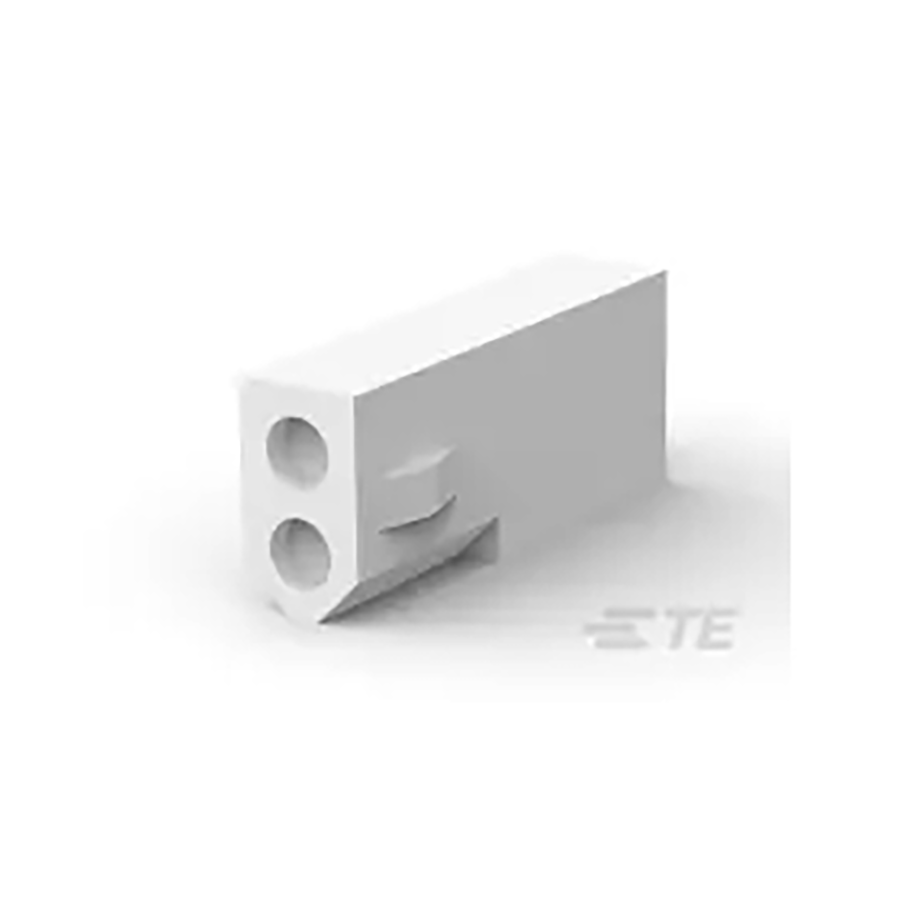

Headers and Wire Housings Free Hanging Receptacle Number of Positions:2 Pitch:3.68 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 20.828 mm |
| Width | 8.64 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 5.05 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Depth | 20.57 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Pitch | 3.68 mm |
| Current Rating | 7 A |
| Max Voltage Rating (DC) | 250 V |
| Flammability Rating | UL94 V-2 |
| Approvals | CSA |
| Number of Circuits | 2 |
| Orientation | Straight |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Natural |
| Gender | Male or Female |
| Number of Contacts | 2 |
| ELV | Compliant |
| Connector Type | Receptacle |
| Wire/Cable Gauge | 30 AWG |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Row Spacing | 3.68 mm |
| Housing Material | Nylon |
| Wire/Cable Type | Discrete |
| Fastening Type | Ramp |
| Circuit Application | Power |
| Connector System | Wire-to-Wire |
| Contact Style | Socket |
| Max Voltage Rating (AC) | 250 V |
| Wire Gauge (Max) | 18 AWG |
| Wire Gauge (Min) | 30 AWG |
| Housing Color | Natural |
| Insulation Diameter | 2.79 mm |
| Contact Gender | Female |
| VDE Tested | No |
| Number of Signal Positions | 2 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Contact Retention | Without |
Stock: 2344
Distributors
pcbx
pcbxUnit Price$0.20690
Ext.Price$0.20690
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.20690 | $0.20690 |
| 10 | $0.16757 | $1.67570 |
| 50 | $0.15606 | $7.80300 |
| 100 | $0.14534 | $14.53400 |
| 500 | $0.13376 | $66.88000 |
| 1000 | $0.12311 | $123.11000 |
